7R 230W Bulb Beam Wash Moving Head Light Touch Screen Stage Effect Show Wedding Concert

Technical specification

Voltage:100-240V 50/60Hz

Bulb: 230W 7R

Len: Quartz glass optical len.

Channel:18/16CH optional.

Color wheel:14 colors + open with the rainbow effect.

Rotating gobo wheel: 9 replaceable gobos(4 glass+4 metal+1 water wave) + open.

Prism 1: 24 facet circular prism.bi-directional rotating at variable speed.

Prism 2: 5 facet fixed prism.Prism 1 and Prism 2 can working together.

Focus: 0~100% electrical focus from fuzzy to clear.

Dimmer: 0~100% linear dimmer.

Frost: 0~100% electric linear frost.

Strobe: Single patch maximum reach 13 times/s.Random and pulse strobe optional.

Pan angle: 540°(16Bit scanning accuracy)

Tilt angle: 270°(16Bit scanning accuracy)

Display: Touch Screen with 180°reversed available, with four buttons.

Control mode: DMX512,Auto run,Master/slave,Sound active mode.

Functions: Reset and lamp on/off through the screen or controller.

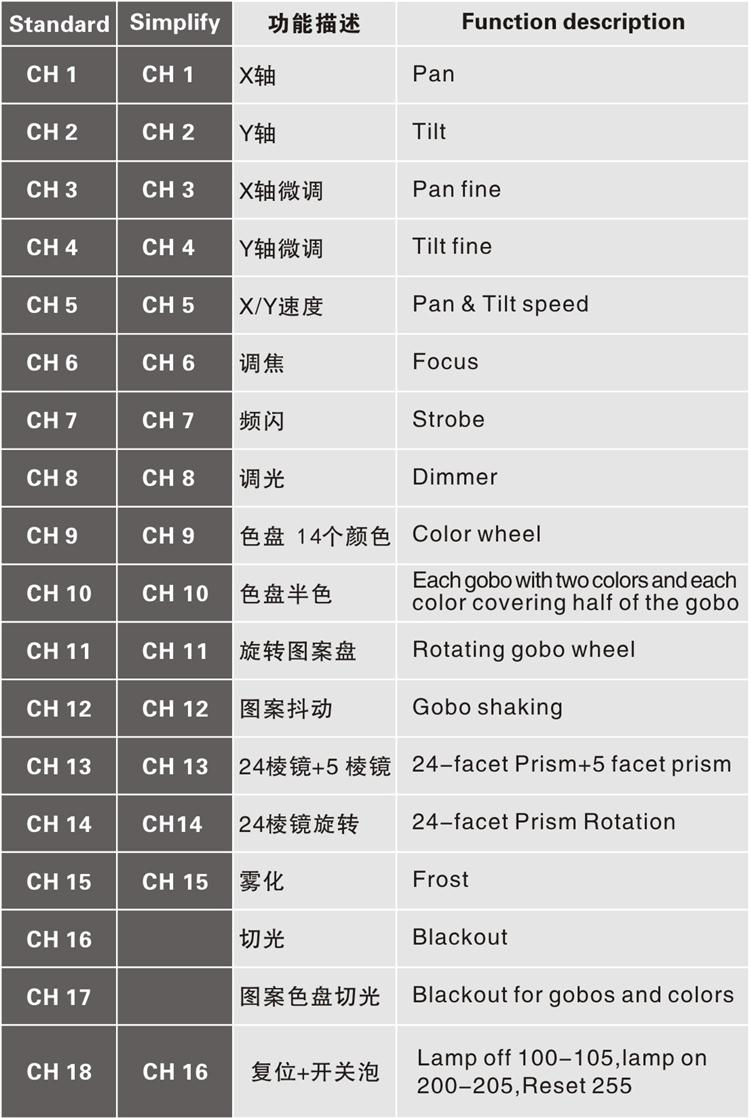

Channel List

Effect show

Application

Contact us
